[Learning]#9 CSS3 Flexbox: main style setting

What is Flexbox?

• Flexbox = Flexible Box
• “CSS3 Flexbox was designed as a one-dimensional layout model, and as a method that could offer space distribution between items in an interface and powerful alignment capabilities.” by Mozilla

Terms

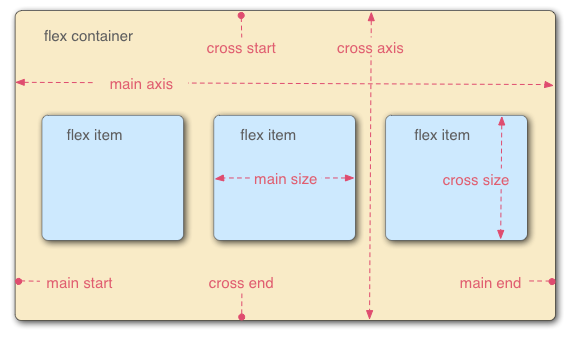

• There are many layers of web, from the picture below, the box is separated into “container（容器）” and “item（項目）.”
• Axes: main axis = inline; cross axis = block

Resource: https://www.webdesigns.com.tw/flexbox_flex-container.asp

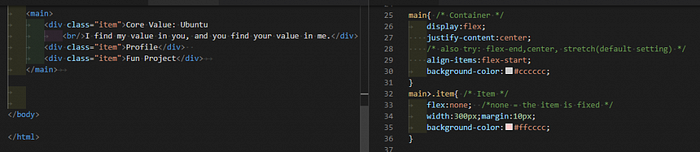

Final Html & CSS

*Just replaced my editor Notepad++ with Visual Studio Code for more useful components.

Display inline, horizontal, and vertical alignment with Flex

1. inline

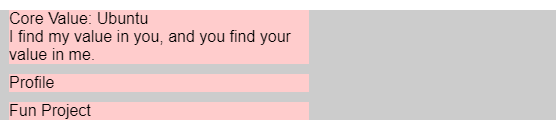

Before

After

main{
    display:flex;
	background-color:#cccccc;
}
main>.item{
	flex:none;/*none = the item is fixed */
	width:300px;margin:10px;
	background-color:#ffcccc;
}

2. horizontal alignment
Before

Afer: try justify-content:center , or flex-end, stretch(default setting, also known as “flex-start”)

main{
    display:flex;
    justify-content:center;
	background-color:#cccccc;
}

3. vertical alignment
Before

After: try align-items:flex-start , or flex-end, stretch(default setting)

main{
    display:flex;
    justify-content:center;
    align-items:flex-start;
	background-color:#cccccc;
}

• align-items:flex-start

• align-items:flex-end
